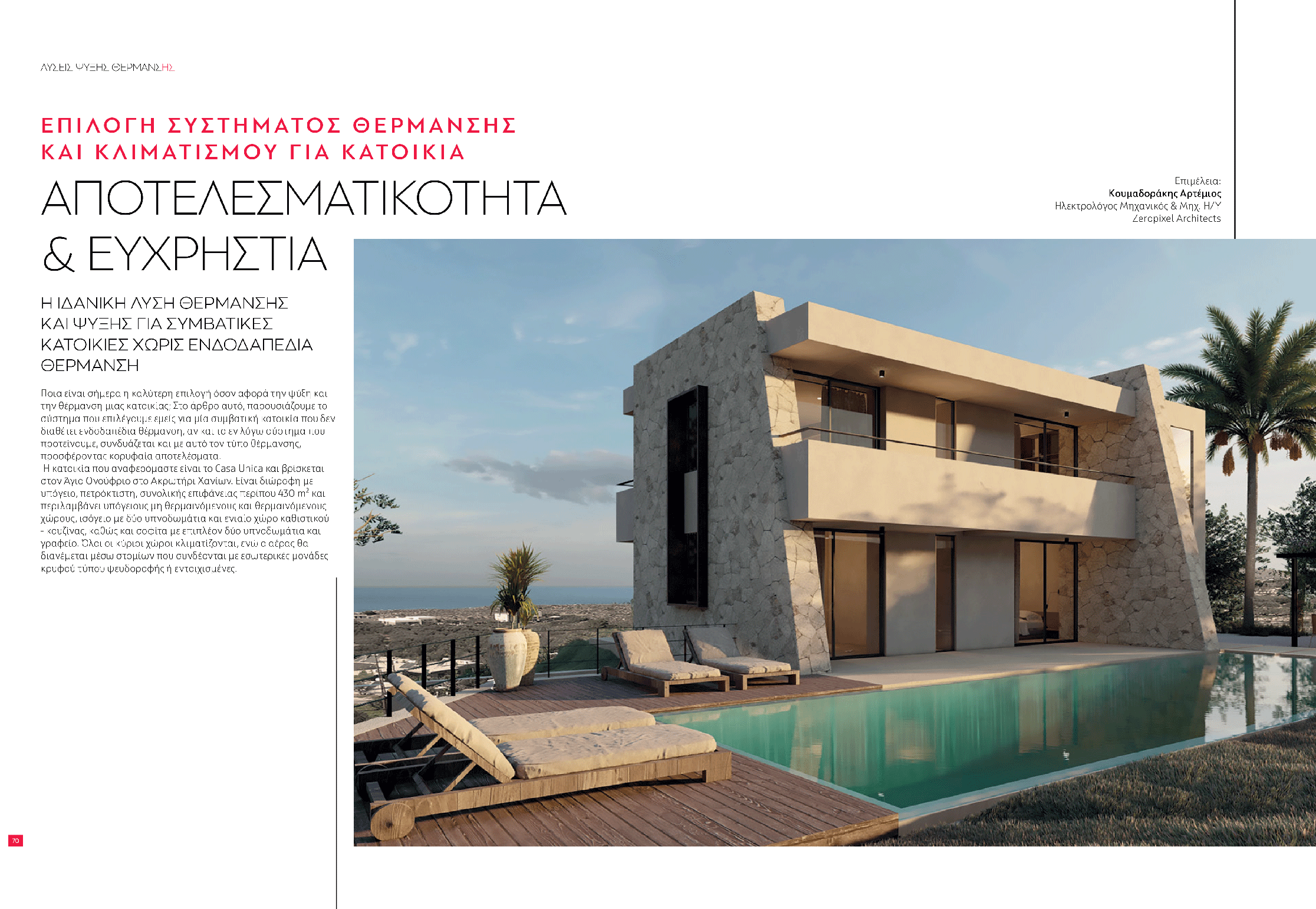

THE IDEAL HEATING AND COOLING SOLUTION FOR CONVENTIONAL RESIDENCES WITHOUT UNDERFLOOR HEATING

What is currently the best choice for cooling and heating a residence? In this article, we present the system we recommend for a conventional home that does not have underfloor heating, although the system we propose can also be combined with underfloor heating, offering top-notch performance.

The residence in question is Casa Unica, located in Agios Onoufrios, Akrotiri, Chania. It is a two-story stone-built house with a basement, with a total area of approximately 430 m². It includes both non-heated and heated basement spaces, a ground floor with two bedrooms and an open-plan living room–kitchen area, as well as an attic with two additional bedrooms and an office. All main areas are air-conditioned, while air is distributed through vents connected to concealed ceiling units or built-in wall units.

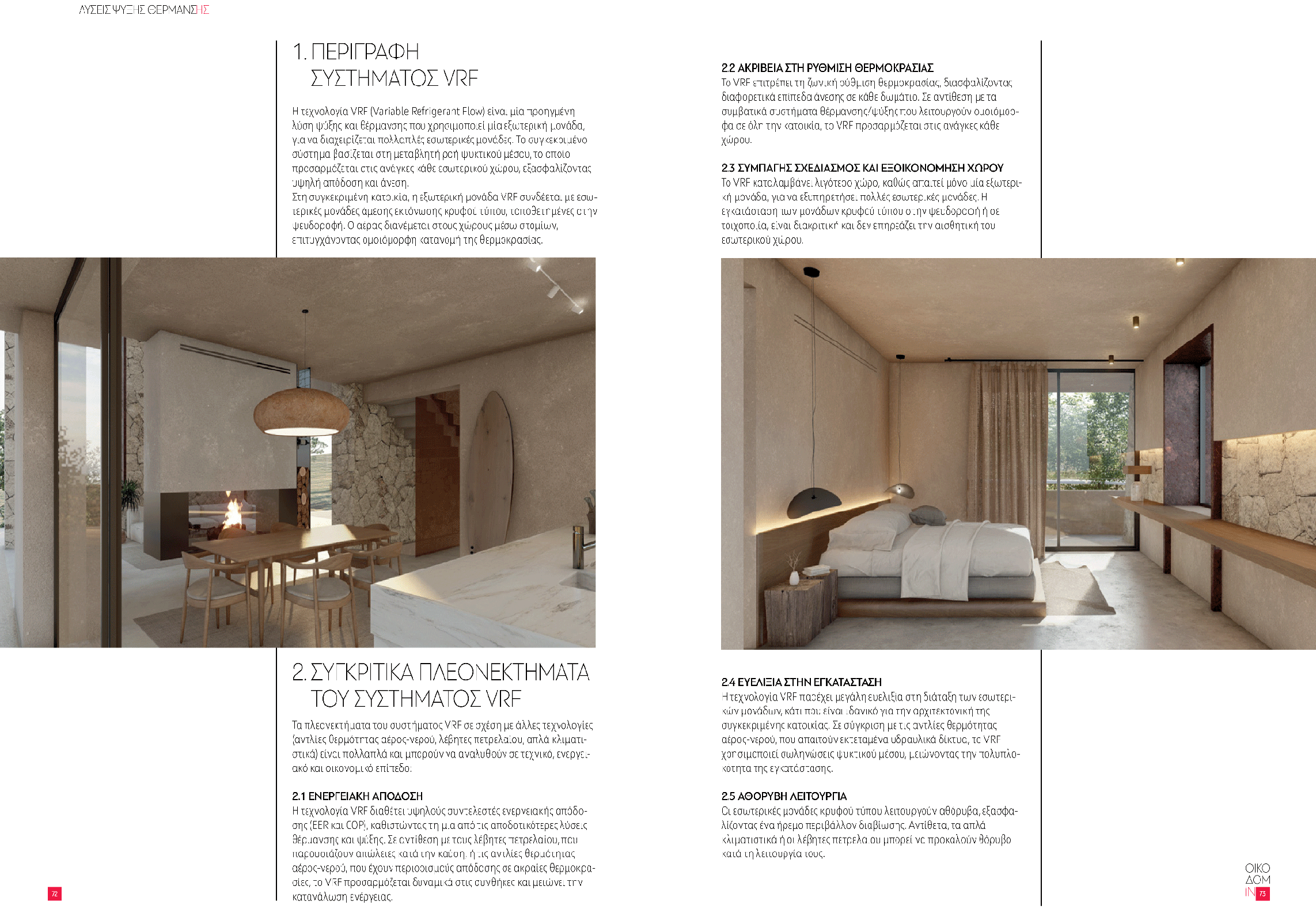

1. SYSTEM DESCRIPTION – VRF

VRF (Variable Refrigerant Flow) technology is an advanced heating and cooling solution that uses a single outdoor unit to manage multiple indoor units. This system is based on variable refrigerant flow, which adjusts to the needs of each indoor space, ensuring high efficiency and comfort.

In this residence, the VRF outdoor unit is connected to concealed direct expansion indoor units installed in the false ceiling. Air is distributed throughout the spaces via vents, achieving uniform temperature distribution.

2. COMPARATIVE ADVANTAGES OF THE VRF SYSTEM

The advantages of the VRF system compared to other technologies (air-to-water heat pumps, oil boilers, standard air conditioners) are multiple and can be analyzed on a technical, energy, and economic level:

2.1 ENERGY EFFICIENCY
VRF technology features high energy efficiency coefficients (EER and COP), making it one of the most efficient heating and cooling solutions. Unlike oil boilers, which have losses during combustion, or air-to-water heat pumps, which have performance limitations in extreme temperatures, VRF dynamically adapts to conditions and reduces energy consumption.

2.2 TEMPERATURE CONTROL ACCURACY
VRF allows for zoned temperature control, ensuring different comfort levels in each room. Unlike conventional heating/cooling systems that operate uniformly throughout the house, VRF adjusts to the needs of each space.

2.3 COMPACT DESIGN AND SPACE SAVINGS
VRF occupies less space because only one outdoor unit is required to serve multiple indoor units. The installation of concealed units in the false ceiling or walls is discreet and does not affect the interior aesthetics.

2.4 FLEXIBILITY IN INSTALLATION
VRF technology provides great flexibility in the layout of indoor units, which is ideal for the architecture of this particular residence. Compared to air-to-water heat pumps, which require extensive hydraulic networks, VRF uses refrigerant piping, reducing installation complexity.

2.5 QUIET OPERATION
Concealed indoor units operate silently, ensuring a calm living environment. In contrast, standard air conditioners or oil boilers may produce noise during operation.

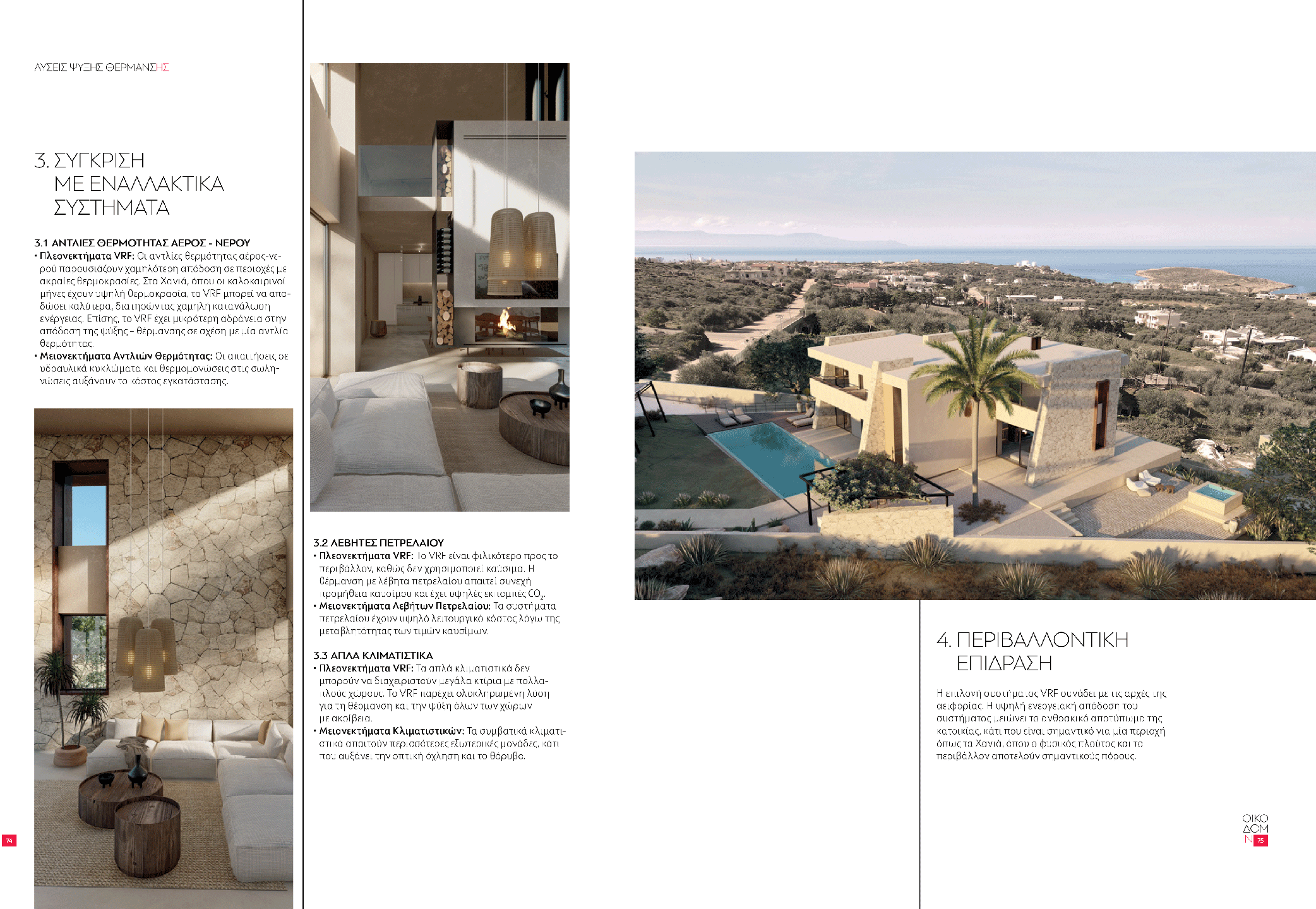

3. COMPARISON WITH ALTERNATIVE SYSTEMS
4. ENVIRONMENTAL IMPACT

The choice of a VRF system aligns with sustainability principles. The system’s high energy efficiency reduces the carbon footprint of the residence, which is particularly important for an area like Chania, where natural wealth and the environment are valuable resources.

3.1 AIR-TO-WATER HEAT PUMPS

• VRF Advantages: Air-to-water heat pumps show lower efficiency in regions with extreme temperatures. In Chania, where summer temperatures are high, VRF can perform better while maintaining low energy consumption. VRF also has lower inertia in heating and cooling performance compared to a heat pump.
• Heat Pump Disadvantages: Requirements for hydraulic circuits and pipe insulation increase installation costs.

3.2 OIL BOILERS

• VRF Advantages: VRF is more environmentally friendly as it does not use fuel. Heating with an oil boiler requires continuous fuel supply and has high CO₂ emissions.
• Oil Boiler Disadvantages: Oil systems have high operational costs due to fluctuating fuel prices.

3.3 STANDARD AIR CONDITIONERS

• VRF Advantages: Standard air conditioners cannot manage large buildings with multiple spaces. VRF provides a comprehensive solution for precise heating and cooling of all areas.
• Air Conditioner Disadvantages: Conventional air conditioners require more outdoor units, which increases visual intrusion and noise.

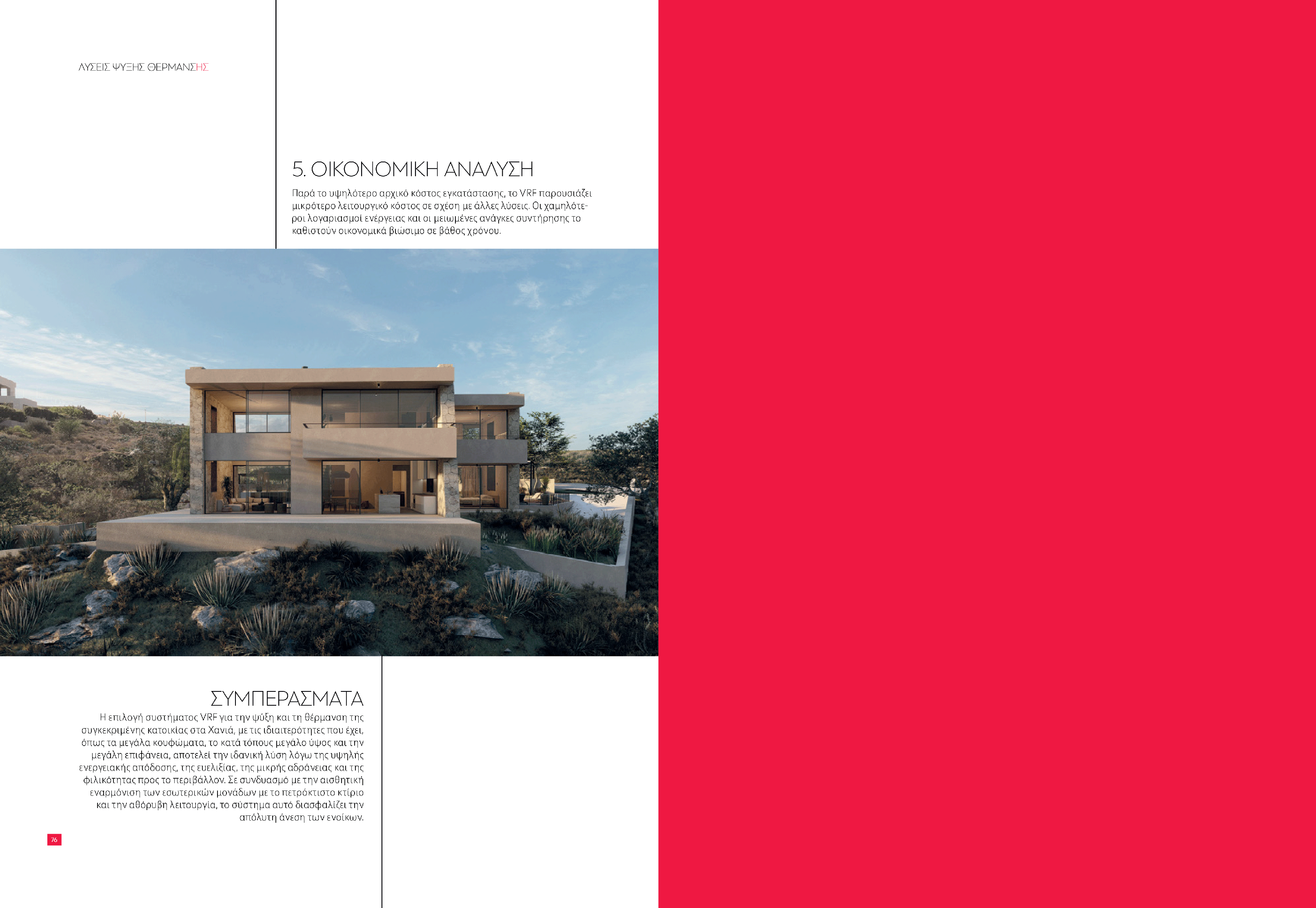

• 5. ECONOMIC ANALYSIS
  Despite the higher initial installation cost, VRF has lower operating costs compared to other solutions. Reduced energy bills and lower maintenance requirements make it economically sustainable over the long term.

  CONCLUSIONS
  The selection of a VRF system for cooling and heating the specific residence in Chania, with its particular characteristics such as large window openings, varying ceiling heights, and extensive floor area, represents the ideal solution due to its high energy efficiency, flexibility, low thermal inertia, and environmental friendliness. Combined with the aesthetic integration of the indoor units with the stone-built structure and their silent operation, this system ensures complete comfort for the occupants.
